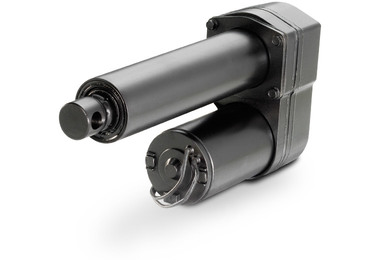

ELECTRAK GX電動推桿

Electrak GX電動推桿配備堅固的絲杠組件，適合需要高達2000 lbf(9 kN)負載能力的應用，而扭簧保持制動器或防逆向驅動ACME螺母（取決于所選的額定負載）可在電動推桿停用時將負載保持在適當位置。擁有前沿的定制化水平，適于末端安裝的各種標準選件以及契合您應用的多種行程長度。

產品介紹

規格

Performance Specifications	Acme Screw	Ball Screw
Input Voltages: VDC	12, 24, 36. 48, 90
Input Voltages: VAC	115, 230, 440
Max Stroke Length: mm (in)	610 (24.0)
Max Dynamic Load: N (lbs)	2250 (500)	6800 (2000)
Max Static Load: N (lbs)	11350 (2550)	18000 (4050)
Max No-Load Speed: mm/s (in/s)	54 (2.1)	61 (2.4)
Max Full-Load Speed: mm/s (in/s)	32 (1.26)	37 (1.4)
Full load duty cycle @ 25ºC (77ºF)	25%
Operating temperature: ºC (ºF)	-25 to +65 (-15 to +150)
Protection Class: Standard (optional)	IP67
Compatible Controls	Varies per model Use our Product Selector for proper selection

Electrak GX特性

Stainless steel extension tube
Overload clutch protection for mid/end of stroke
Auto reset thermal switch for motor protection
Load holding brake with automatic activation
Rugged spur gearing

Lifetime gear lubrication
Self-locking acme screw design
Protective seal
Clevis mounting

Electrak GX選件

Potentiometer
Manual override

Alternate end mounting options
Connector options

瀏覽Electrak GX零件編號

Linear Actuators	1366 KB	Email
Linear Actuators	1424 KB	Email

Electrak GX Series Installation & Operation Manual	730 KB	Email
Electrak GX Series Installation & Operation Manual	730 KB	Email
Electrak GX Series Installation & Operation Manual	830 KB	Email
Electrak GX Series Installation & Operation Manual	605 KB	Email

產品選型 >

Electrak GX Series Installation & Operation Manual 730 KB Email
