軸承支撐 - 公制

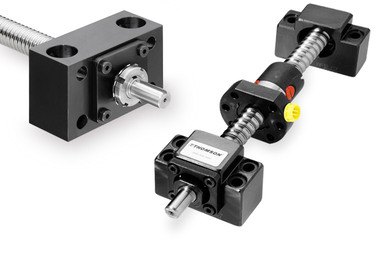

Thomson軸承支撐是Thomson滾珠絲杠公制組件簡便安裝的整套工具。由堅固的鋼材制成，為窄型緊湊設計。有帶雙角度接觸軸承或浮式徑向軸承的法蘭安裝與基礎安裝可選。所有Thomson軸承支撐均有現貨供應，經過預裝配，可即時安裝。

產品介紹

讓 Thomson 幫您做出選擇！

Linear MOTIONEERING^® Ball & Lead Screw Sizing & Selection Tool >

規格:

公制滾珠絲杠
直徑	BK	BF	FK	FF	MK	WK	QK	QF
12	X	X	X	X	X		X	X
16	X	X	X	X	X		X	X
20	X	X	X	X	X		X	X
25	X	X	X	X	X	X	X	X
32	X	X	X	X	X	X	X	X
40	X	X	X	X	X	X	X	X
50	X	X	?????????	????????		X	X	X
63	????????	?????????	????????	????????			X	X

規格:

英制系列滾珠絲杠
直徑 x 導程	BK	BF	FK	FF	MK	WK	QK	QF
0.500 x 0.200 0.500 x 0.500	X	X	X	X	X		X	X
0.631 x 0.200 0.631 x 1.000	X	X	X	X	X		X	X
0.750 x 0.200 0.750 x 0.500	X	X	X	X	X		X	X
0.875 x 0.200	X	X	X	X	X	X	X	X
1.000 x 0.200 1.000 x 0.500 1.000 x 1.000 1.171 x 0.413	X	X	X	X	X	X	X	X
1.150 x 0.200 1.250 x 0.200 1.250 x 0.250 1.250 x 0.500	X	X	X	X	X	X	X	X
1.500 x 0.200 1.500 x 0.250	X	X	X	X	X	X	X	X
1.500 x 0.473	X	X	X	X	X	X	X	X
1.500 x 0.500	X	X	X	X	X	X	X	X
1.500 x 1.000	X	X	X	X	X	X	X	X
1.500 x 1.875 1.500 x 2.000	X	X	X	X	X	X	X	X
1.750 x 0.200	X	X			X	X	X	X
2.000 x 0.200 2.000 x 0.500 2.000 x 1.000 2.250 x 0.500 2.250 x 1.000						X	X	X
2.500 x 0.250 2.500 x 0.500 2.500 x 1.000						X	X	X

軸承支撐概覽

由堅固的鋼結構
窄型、緊湊設計
基礎或法蘭安裝配置
預裝配的可隨時安裝
有現成產品

VIDEO: Ten Essential Steps for Selecting the Optimal Ball Screw

When it comes to selecting the right ball screw for your application, knowing and understanding your application’s requirements is crucial. This video covers 10 helpful steps to ensure you’re on the right path.

手冊

Assembly and maintenance instructions KGT/TGT	504 KB	Email
Assembly and maintenance instructions KGT/TGT	965 KB	Email
Assembly and maintenance instructions KGT/TGT	485 KB	Email
Assembly and maintenance instructions KGT/TGT	461 KB	Email
Assembly and maintenance instructions KGT/TGT	483 KB	Email

產品選型 >

2D/3D CAD Drawings

滾珠絲杠末端支撐-英制		—	—
滾珠絲杠末端支撐-公制		—	—
